Wiring a Three Way Point

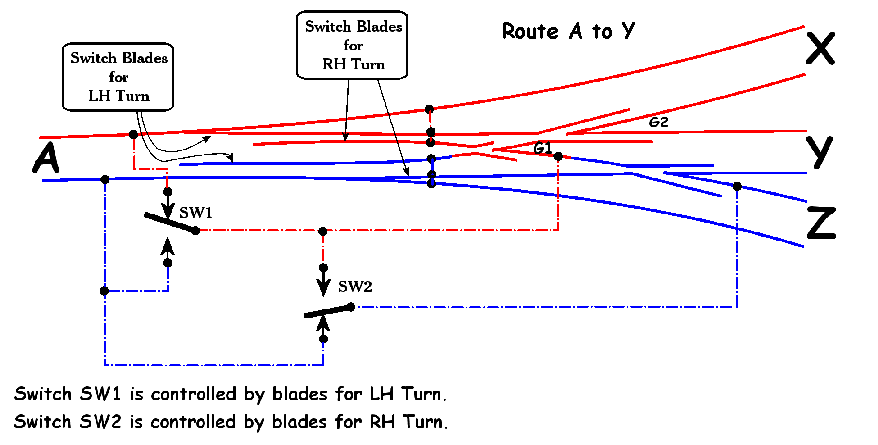

The diagram below shows, initially, the point with all switch blades in mid throw.
Move your cursor on and off the blocks below left to see the effect of switching the point.
Note that each colour represents an electrical section of the point.
If the switches, SW1 & SW2, are not present and the switch blades aren't touching the stock rails
then there will be no connection between the sections.




A to X A to X A to Y A to Y A to Z A to Z

Mid Throw

Blank


Return to Point Wiring Front Page Return to Site Front Page

On the right is a link to a downloadable pdf file giving the information on this page.
In order to read it you will need to have Adobe Acrobat,
or an equivalent, on your computer.
Download 3 Way Point pdf
